AXEON Inline Flow Meter 1-10 GPM 1" FNPT x 1" FNPT

Part #: 204246
Regular price List Price $129.11
Please Login / Sign Up

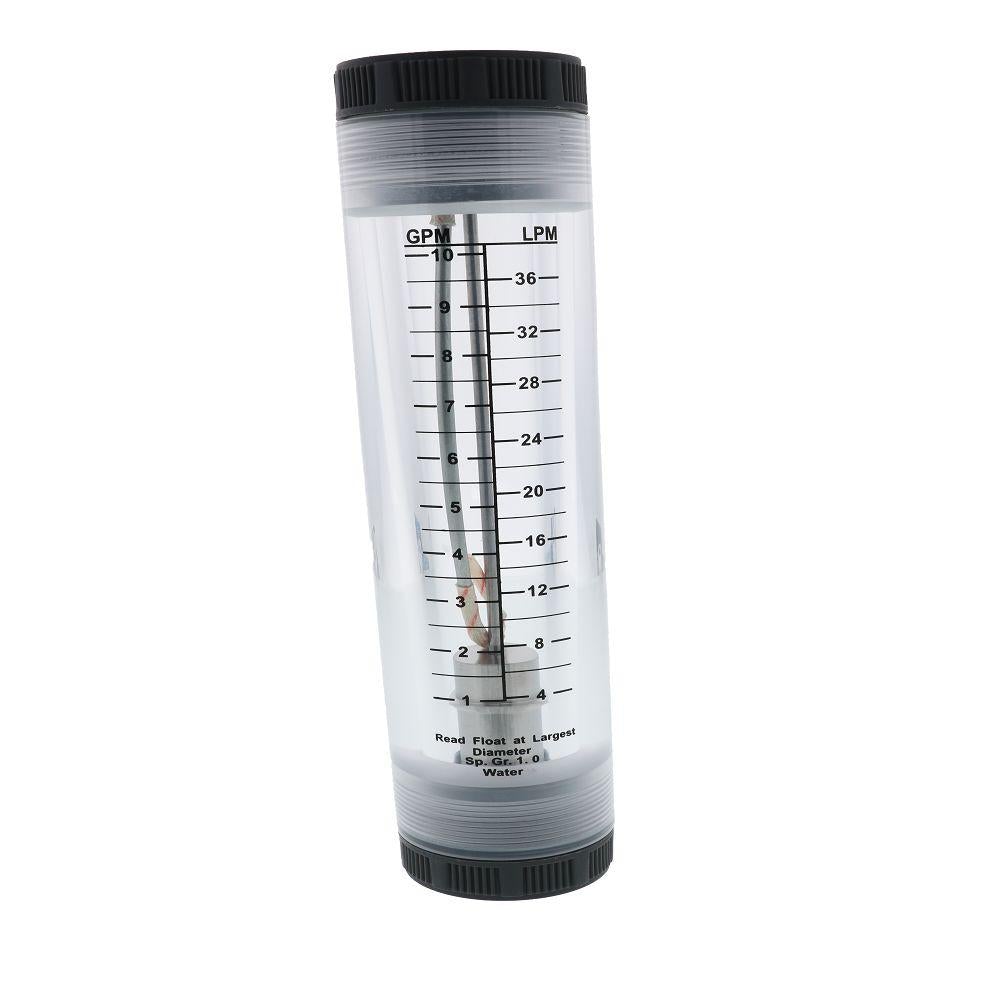

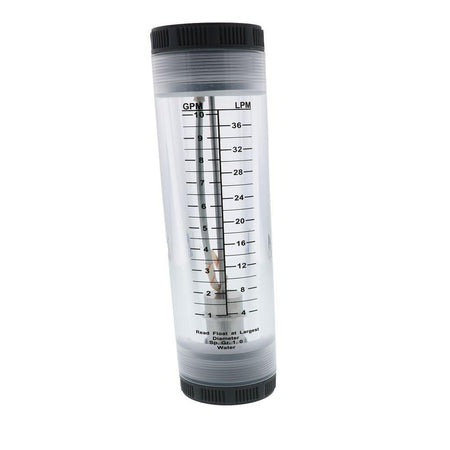

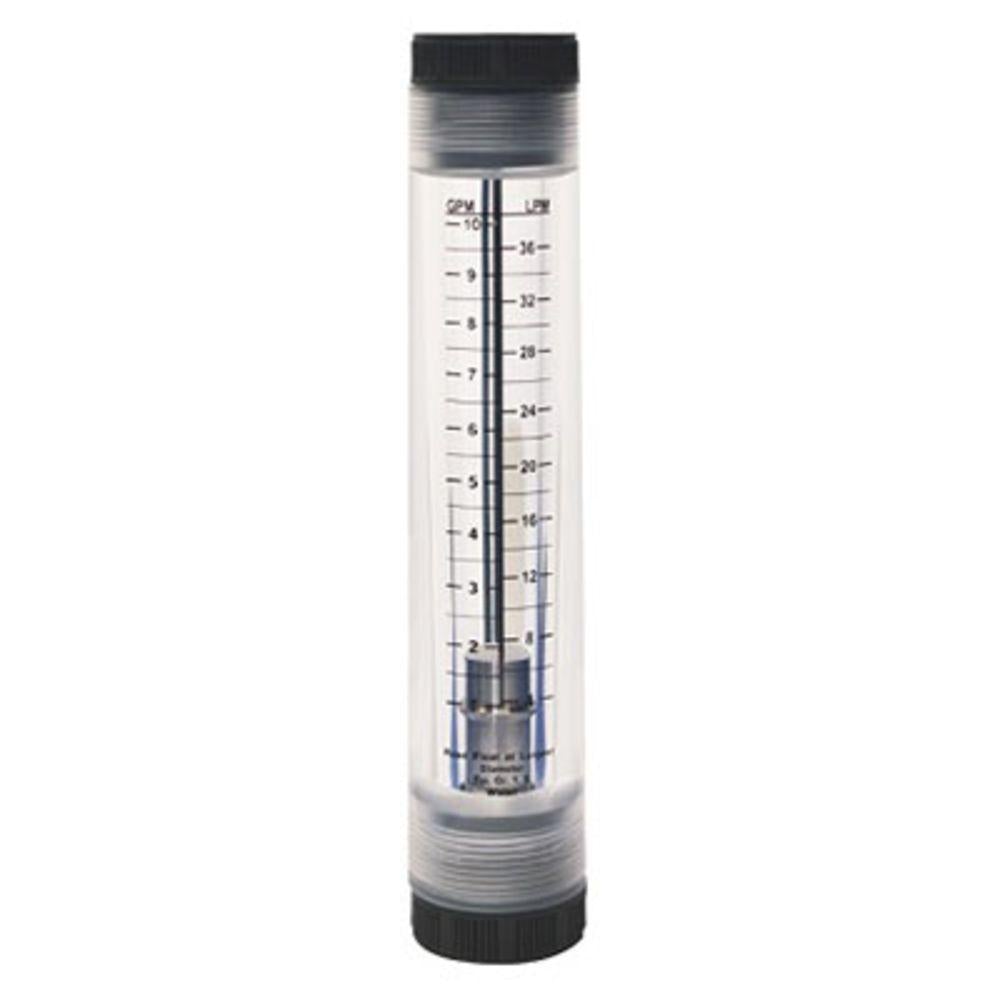

The AXEON 204246 is an inline flow meter, which features an easy to read scale, stainless steel float, and 100% tested for accuracy. The 204246 is very durable because the main body is constructed from Acrylic, the o-rings are silicone, and the female connectors are polypropylene. The meters connections are 1" FPT and the meter reads from 1 to 10 GPM.

Features:
  • Acrylic Body
  • Individually Packaged
  • 100% Tested for Accuracy
  • Calibrations in GPM and LPM
  • Solid One Piece Injection Molded
  • Permanent Screen Printed Scales
  • Stainless Steel Float and Internals
  • Body: Acrylic
  • O–Rings: Silicone
  • Connections: Polypropylene
  • Guide: 316L Stainless Steel
  • Float: 316L Stainless Steel
  • Maximum Pressure: 150 psi
  • Temperature Rating: 120°F
  • Accuracy: ± 4%
  • AXEON Part Number: 204246
